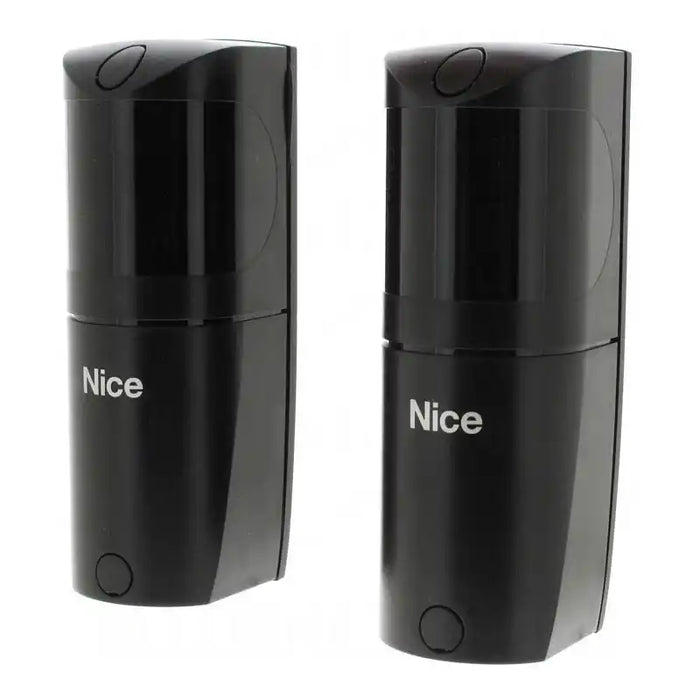

The new 210-degree solution: The F210B photocells has a horizontal scope of 210 degree, thereby increasing the safety level of the system and simplifying installation.
- Synchronised photocells horizontally adjustable through 210° and 30° vertically
- Uses Nice BlueBus technology
- Polycarbonate casing
| Details | |
| Dimensions (H x W x L) | 46x45x128mm |
| Dimensions | |
| Weight (kg) | 0.23 |
| Electrical Data | |
| Absorption (A) | 1 BlueBUS Unit |
| Power Supply (Vac 50/60 Hz) | the device can only be connected to BlueBUS unit |
| Performance Data | |
| Working Temp. (°C Min/Max) | -20 ÷ +55 |
| Photocell Specifications | |
| Estimated Range (m) | 10 (30 with jumper cut) |
| Technical | |
| Protection Level (IP) | 44 |
F210B_Manual.pdf
