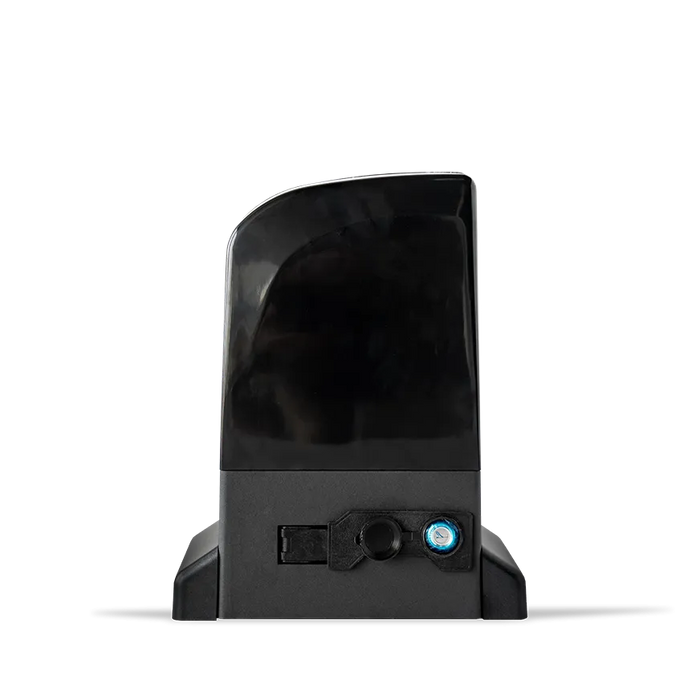

Motorline Galo 600

Galo 2200kg Kit

SKU 10001090
by ACCESS X
Galo battery Backup GALO Battery Backup
MCONNECT-LINK by Motorline Mconnect Link
Motorline M200 GSM GSM Switch M200
Steel-Gear-Rack-805 Steel Racking 2m Length
Combiarialdo Screw on Rack Fixing Screw for Steel Racking Screw on Rack Fixing Screw
Request a custom quote

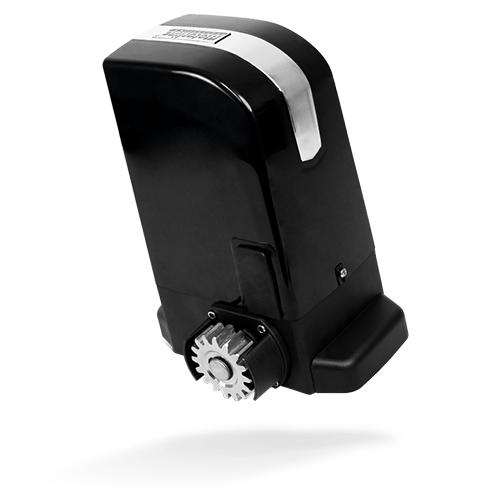

Galo 2200kg Operator

The Galo is a 36V brushless motor. The absence of brushes and the lubricated gearbox guarantee very intensive use with high performance.

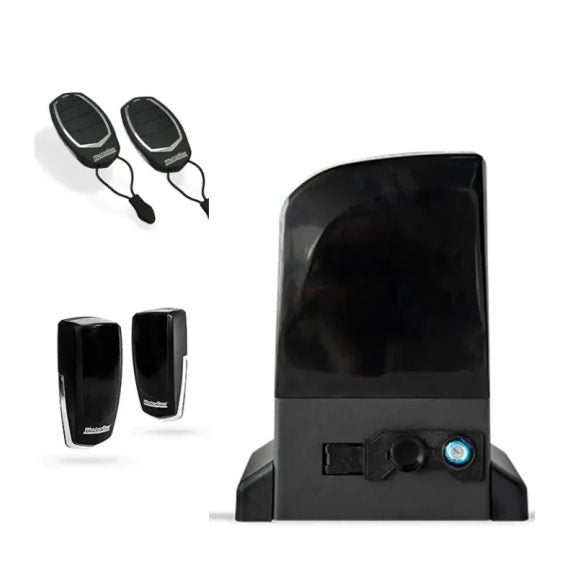

This Kit Includes:
- 1x Brushless Galo operator 36V
- 1 x MC91BL-SC Control Board
- 2x FALK Remotes
- 1x MF30 Photocells

Add the Mconnect Link for app programming and remote management with WIFI.

Max Weight: 2200kg
Duty Cycle: 55%
Supply Voltage: 240Vac
Motor Voltage: 36Vdc
Motor Force: 1,400N
Operating Temp: -20°C to +55°C
Water Tightness: IP44
Speed: 450mm/s
Noise: < 50dB
Obstacle Detection: YES - BUILT IN
Battery Charger: YES - BUILT IN

View Manual
