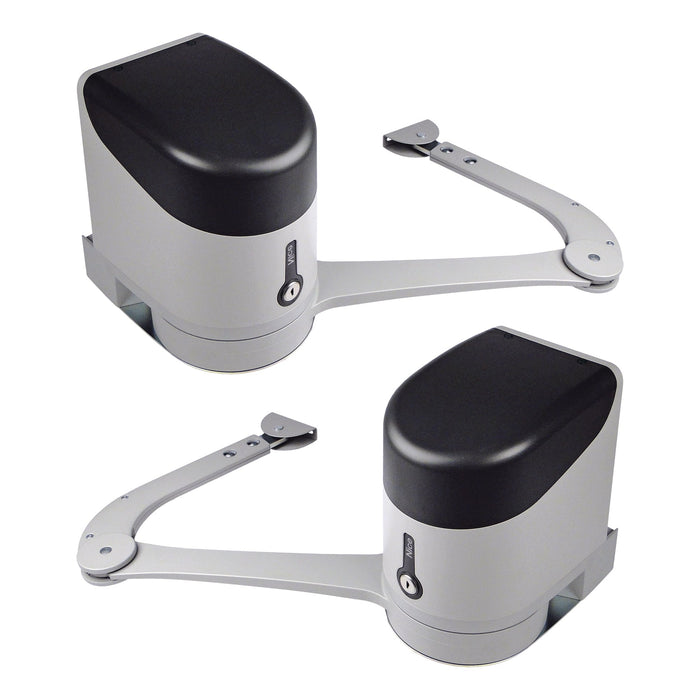

For fast operation of swing gates with leaves up to 3m or 270 kg. Ideal for residential applications, including with large pillars/posts.

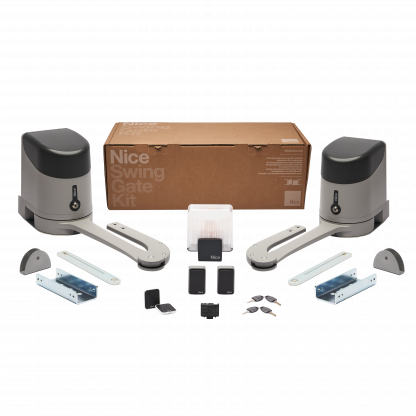

Includes: 2 remotes and 1x receiver.

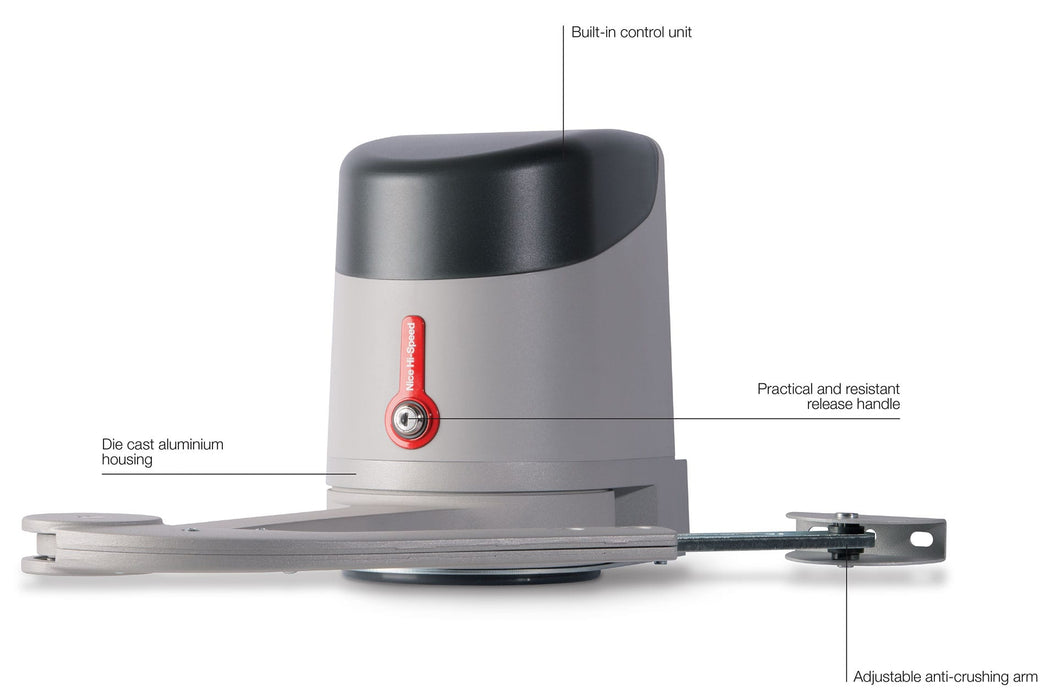

Electromechanical gearmotor with articulated arm, surface mounted, 24 VDC, with magnetic encoder. Ideal for intensive use and fast - 90° opening in about 10* seconds.
Powerful and reliable: thanks to the 500 Nm torque and encoder technology, for millimetric accuracy and reliability.
Safe movement: double technology obstacle detection.
Sturdy: thanks to the polyester painted aluminum body; more weather-resistant.

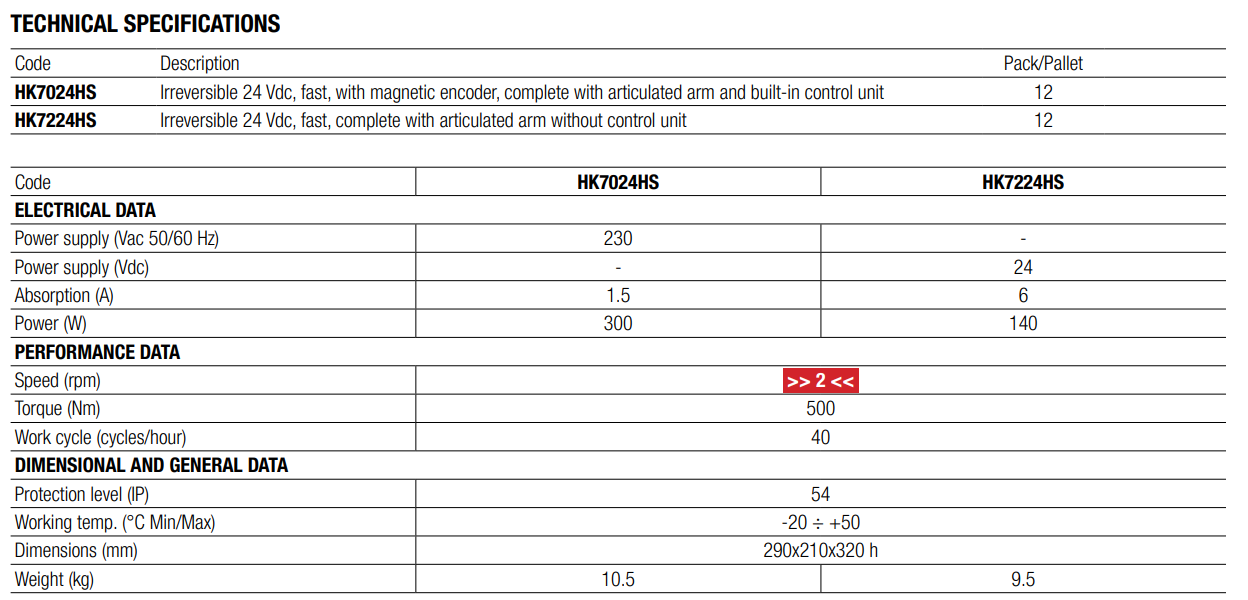

Two non-reversible, 24 VDC versions with opening and closing limit switches: with integrated control unit (HK7024) or without control unit (HK7224).
Quick and practical installation: the length of the articulated arm can be adjusted for maximum flexibility.
Simple and precise limit switch adjustment: mechanical stops and micrometric adjustment screws.
No blackouts: operation in event of power failure with the optional batteries (PS124) housed in the motor.
