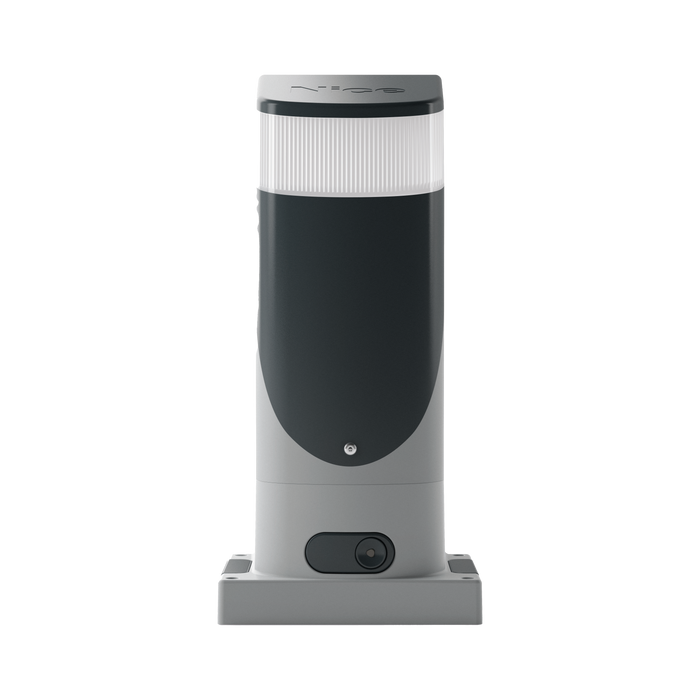

NICE Slight Motor 400kg Gates

NICE Slight Motor - 24v at 400kg & up to 6m gates length at 21m/min

Motor with integrated control unit and absolute encoder.

Innovative ultra-compact design: the vertical configuration of the motor makes it easy to install even in narrow openings.

Simple: thanks to the BlueBUS system allowing connections with just two wires between the control unit and up to 7 pairs of photocells and control, safety and signaling devices.

Integrated LED light: programmable as either a flashing or courtesy light, warns of gate movement during opening and closing.

Master/slave selection: also, automatically synchronises 2 motors, allowing automation of sliding gates with two opposing leaves.

Smart: thanks to obstacle detection and automatic programming of operating times. Self-diagnostics with indications via the flashing light.

Safe: adjustable acceleration and deceleration at the start and end of each manoeuvre. Integrated absolute limit switch

• simple and precise regulation thanks to the rapid learning in a single movement with the motor released;

• no bracket or accessory to be installed on the rack;

• particularly suitable for snowy areas.

Practical: control unit and PS124 buffer batteries (optional) connected by practical guided plug-in connector.
