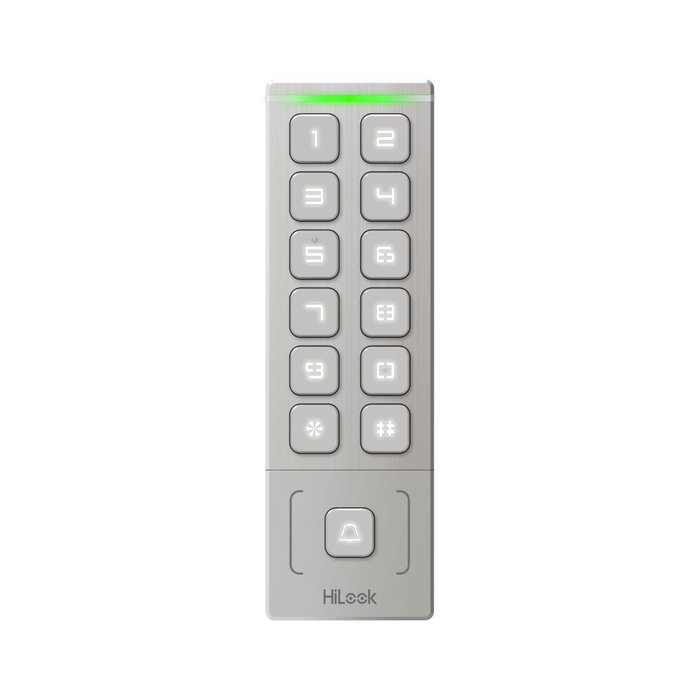

Access X Standalone Keypad

Standalone Weatherproof Access Control Keypad Terminal – Built-in Keypad + MiFare Card-Reader – Metal Casing – Slim Design.

Key Features:

• Slim and flexible design with metal.
• Max. 1 code & 1 relay.
• Max. 1000 proximity cards.

• Built-in card reader for M1 card reading.
• Outdoor application IP65.
• Supports multiple authentication types: card, PIN

HiLook HA-AC-S1

- Button: Physical buttons
- Indicator: Support
- Power supply: 12 VDC, 1 A
- Dimensions: 151mm × 48mm × 21.5mm (5.9″×1.9″×0.8″)

- Output 1, Input 1
- Exit button: 1
- Door contact input: 1
- Alarm output: 1
- Wiegand: Wiegand out, supports Wiegand 26/34

- User capacity: 1000
- Card capacity: 1000

- Card type: M1 card
- Card reading distance: 3 cm
- Card reading duration: 1s

- Net weight: 220.3g (0.5 lb)
- Rough weight: 352g (0.8 lb)
- Working temperature: -40 °C to 65 °C
- Working humidity: 0 % to 90 % (no condensing)
