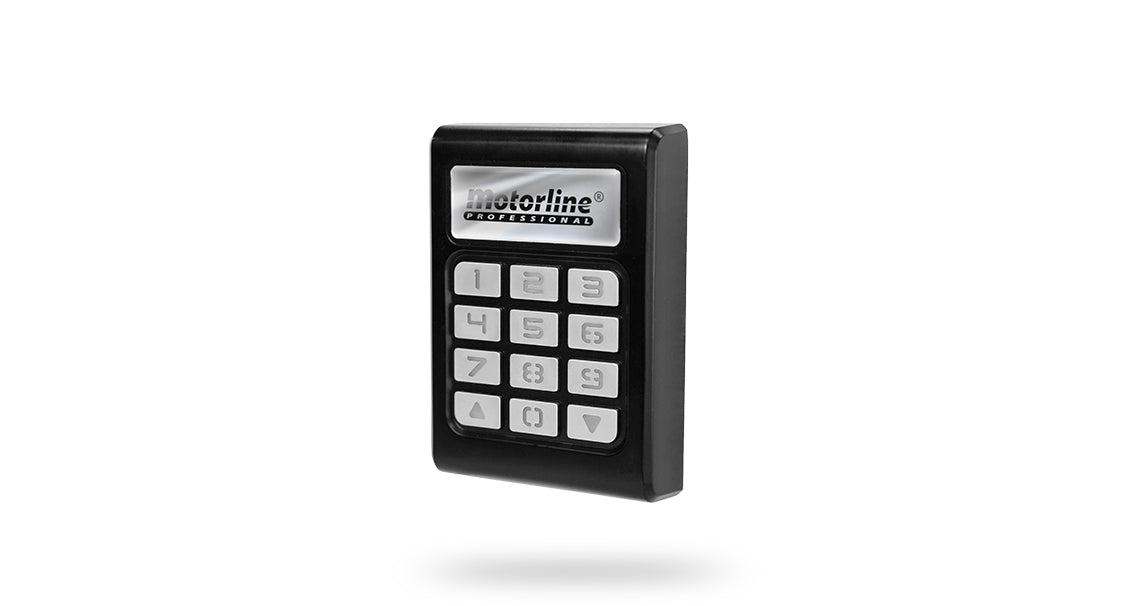

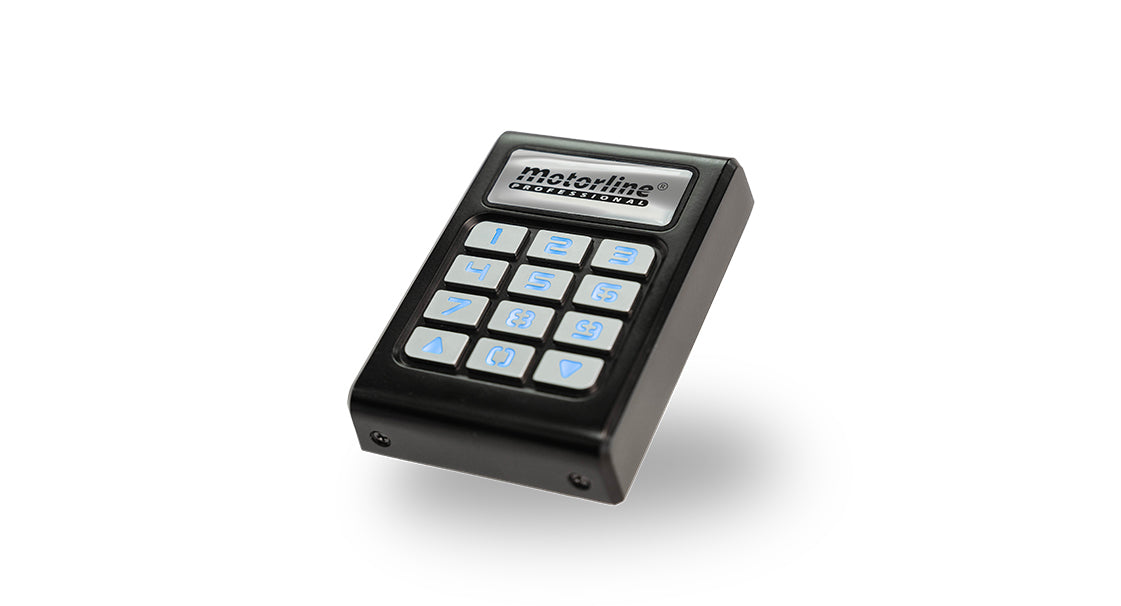

TEC2 Wireless Keypad

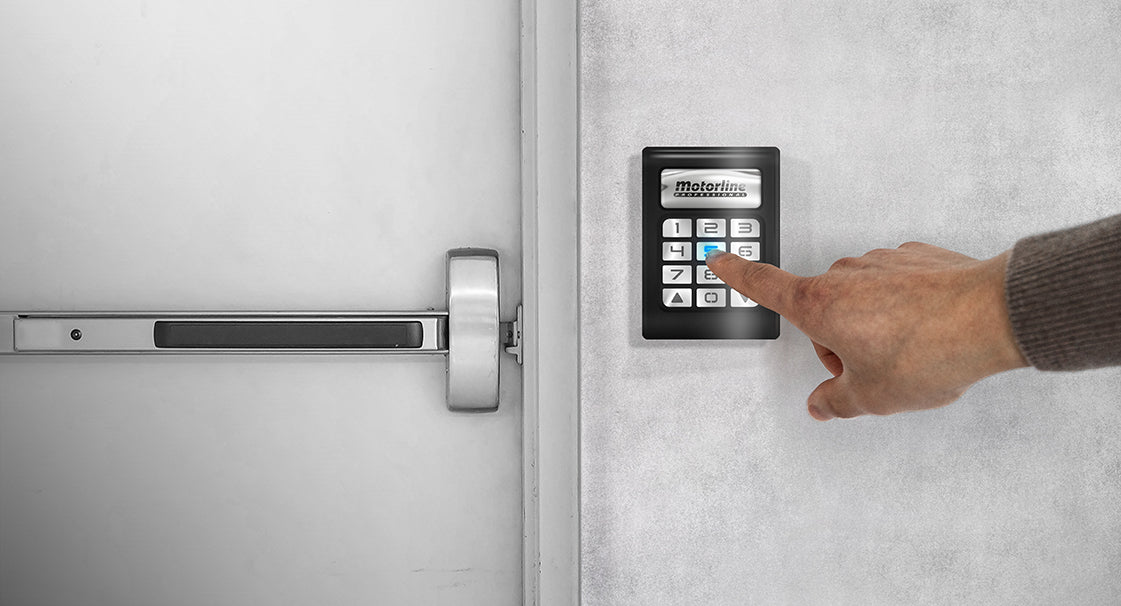

Wireless keypad for doors and gates, designed for efficient access control.

The IP65 protection rating ensures protection against dust and water, guaranteeing reliable performance even in demanding conditions.

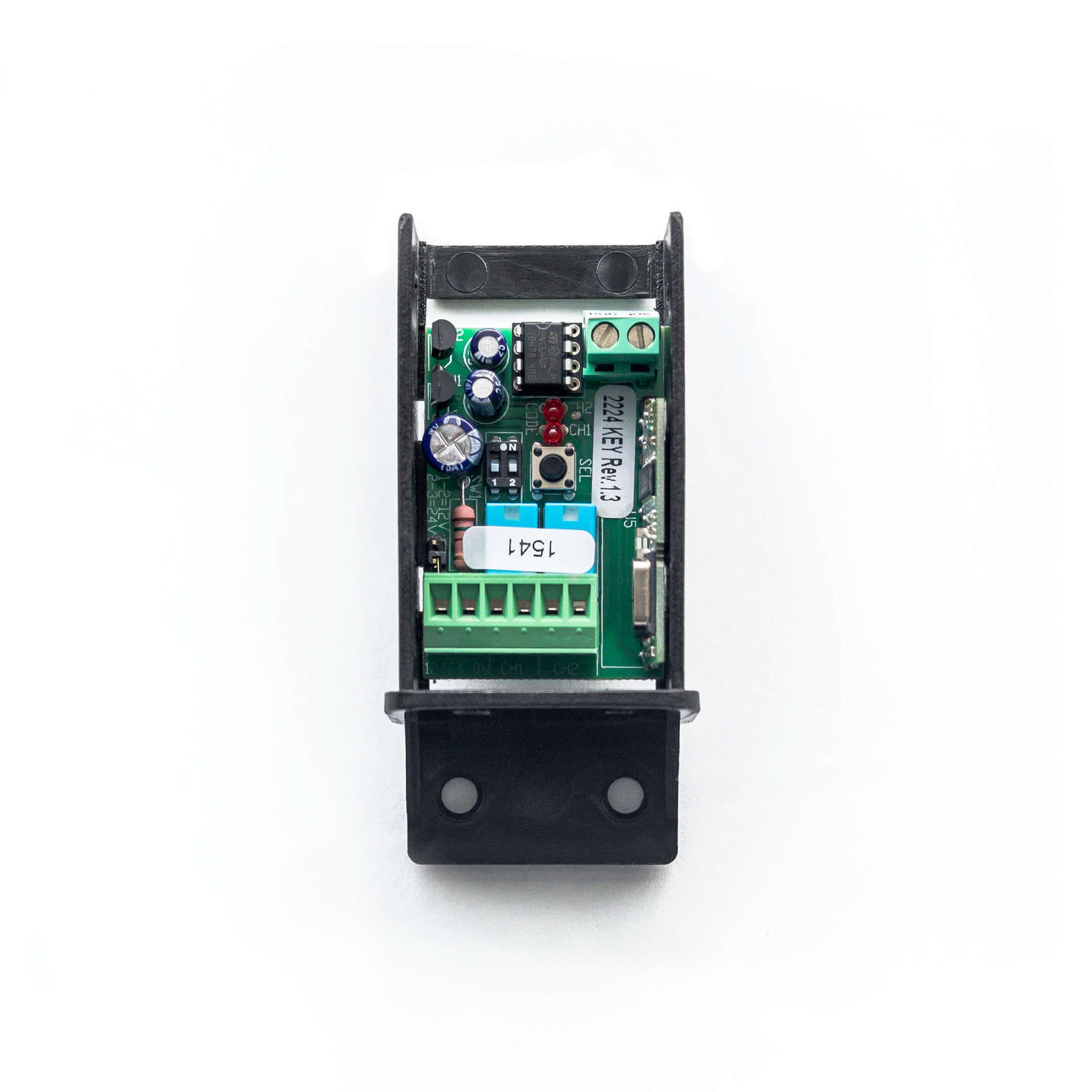

Works as a FALK remote and connects to in-built motorline receiver or the MR5 external receiver.

Constructed from reinforced aluminum, it resists vandalism attempts, while wireless installation simplifies deployment, making it quick and convenient.

Compatible only with MOTORLINE control boards or receivers.

• IP65.

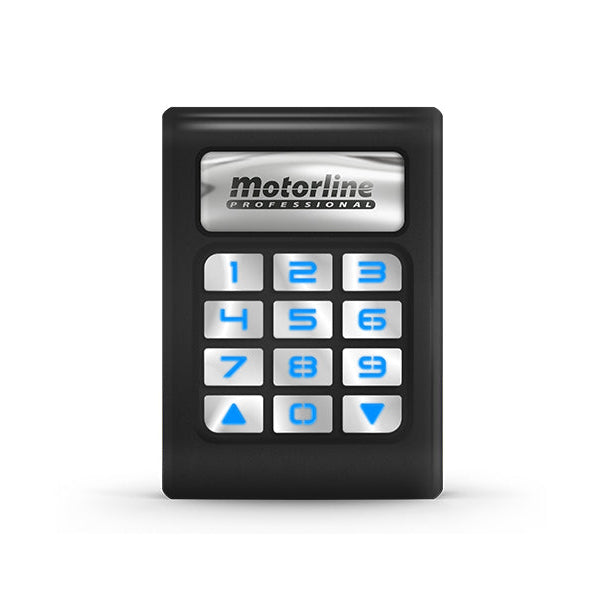

• Backlit keypad.
• 2-year battery life (10 emissions a day).
• 2 channels.

- Battery = CR2450 3B DC/580 mAh
- Frequency = 433.92±0.15 MHz
- Transmission power = 0.1 mW
- Output for auxiliary accessories = 0 to 8 digits (99,999,999 combinations)
- Working Temperature = -20°C to 50°C
- Protection class = IP65
- Medium range in open space = 100 meters
- Medium range in closed space (with barriers) = 35 meters
- Battery capacity = 2 years (with an average use of 10 emissions per day)
- Auto Sleep Mode Time = 5 sec
- Weight = 300g

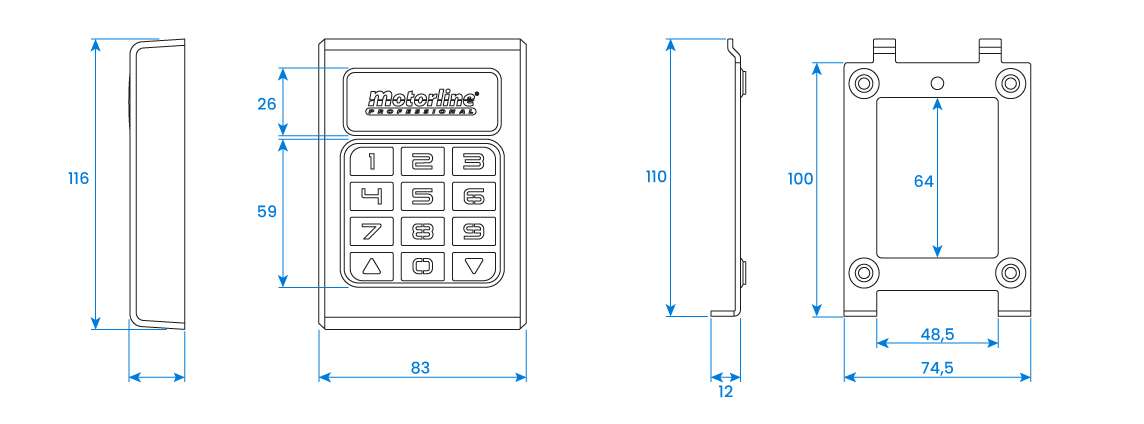

- Dimensions = 116x83x22mm
