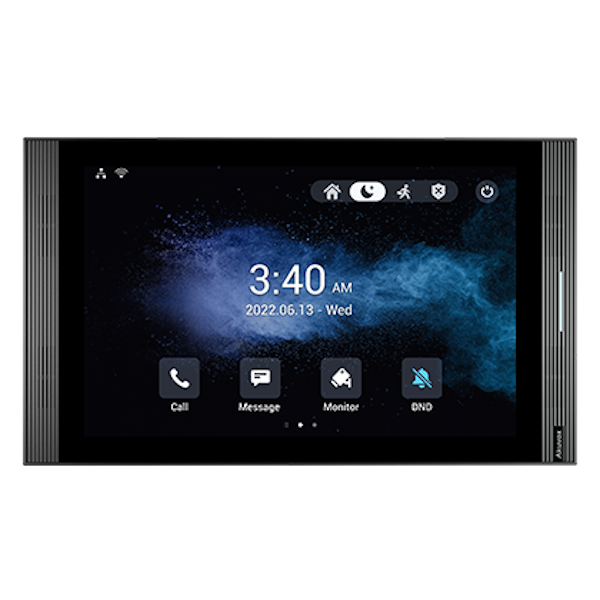

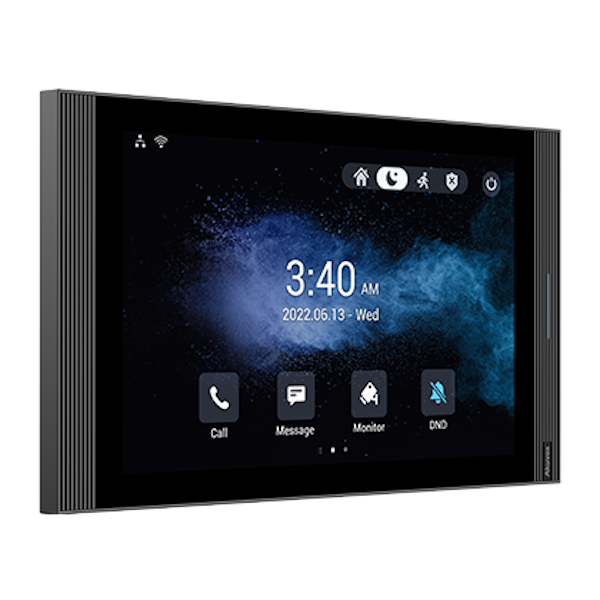

AV-S567-WIFI Akuvox Android 12OS 10″ Indoor High-Resolution Monitor with Wi-Fi 6.0
The Akuvox AV-S567w 10” indoor monitor runs on industry-leading Android 12 OS, and comes with Wi-Fi 6 communication technology. The quad speakers and dual mics together provides superior audio quality. With the minimalist design, the AV-S567W blends well into any modern interior design.
Physical & Power
- Front panel: Plastic
- RAM / ROM: 2GB / 8GB
- Display: 10-inch IPS LCD
- Screen: 10-inch capacitive touchscreen
- RS485 Port: 1
- Relays Out: 1
- Bell in: 1
- Alarm Input: 8
- Microphone: Dual microphones
- Speaker: Quad speakers
- Ethernet Ports: 1 x RJ45
- POE: 802.3af Power-over-Ethernet
- Power: 12V DC Connector
- Tamper Resistant: Support
- Installation: Wall-mounted & Desktop
- Dimension: 278 x 164 x 22.8 mm
- Working Humidity: 10 ~ 90%
- Working Temperature: -10°C ~ +45°C
- Storage Temperature:-20°C ~ +70°C
Touch Screen Display
- Display Mode: Normally black, Transmissive
- LCD Size: 10-inch (Diagonal)
- Aspect Ratio: 16:10
- Resolution: 1280×800
- Contrast ratio: 900:1
- Luminance: 290 cd/m²
- Viewing Angle: 80° Left, 80° Right, 80° Upper, 80° Lower
- Touch Screen: Projected capacitive
Audio
- SIP v1 (RFC2543), SIP v2 (RFC3261)
- Narrowband audio codec: G.711a, G.711μ, G.729
- Broadband audio codec: G.722D
- TMF: In-band, out-of-band DTMF (RFC2833), SIP Info
- Echo Cancellation
- Voice Activation Detection
- Comfort Noise Generator
- Automatic Gain Control
Video
- Streaming formats: H.263 & H.264
Networking
- Protocols support: IPv4, IPv6, HTTP, HTTPS, FTP, TFTP, SNMP, DNS, SNTP, RTSP, SRTP, RTP, TCP, UDP, TLS, ICMP, DHCP, ARP
Deployment & Maintenance
- Auto-Provisioning
- Web management portal
- Web-based packet dump
- Configuration backup / restore
- Firmware upgrade
- System logs (include door access logs)
Voice Assistant
- Voice pickup distance up to 5 meters
- Voice recognition accuracy up to 95%
- Privacy protection with native voice data
- Support English
Akuvox-S567W-WIFI-Datasheet-V3.0.pdf
