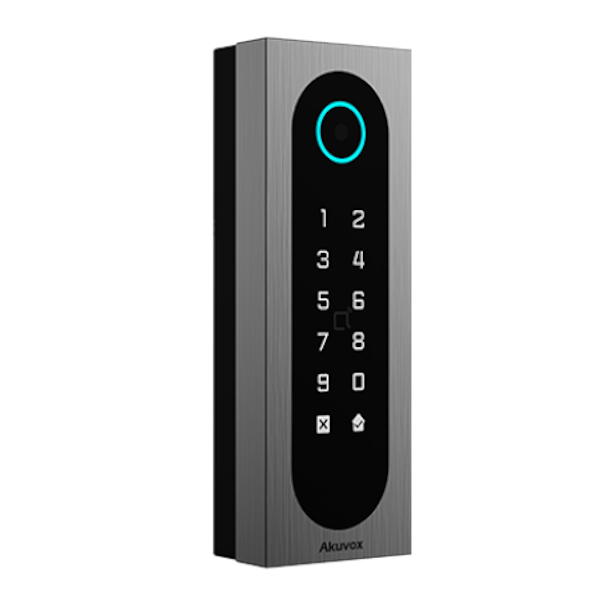

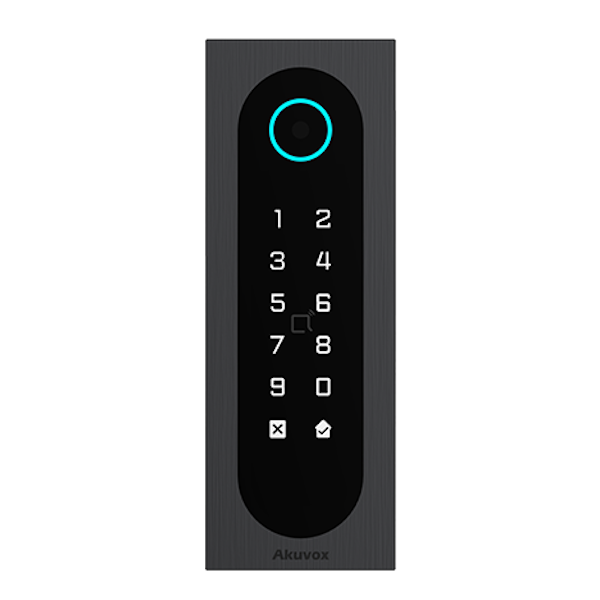

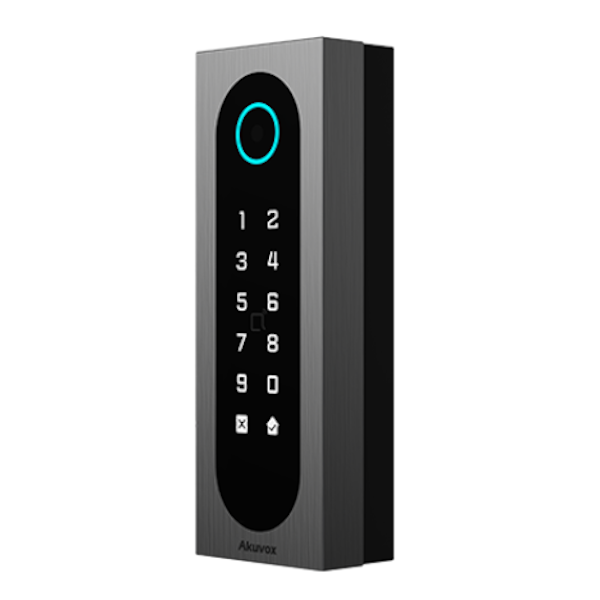

Akuvox Multi-Access Control Keypad

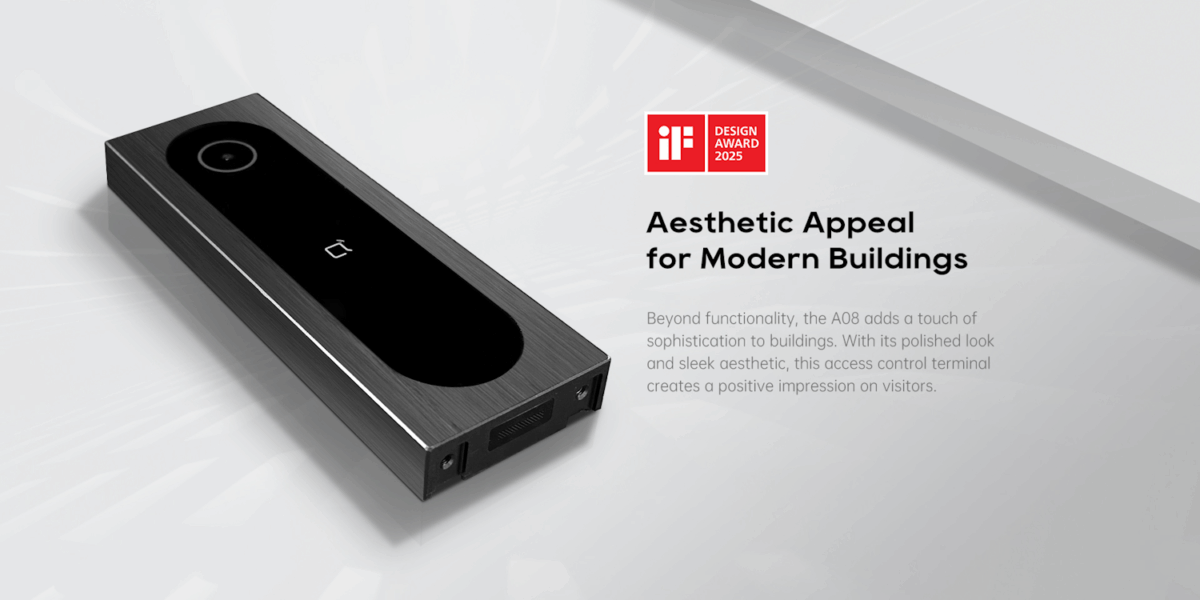

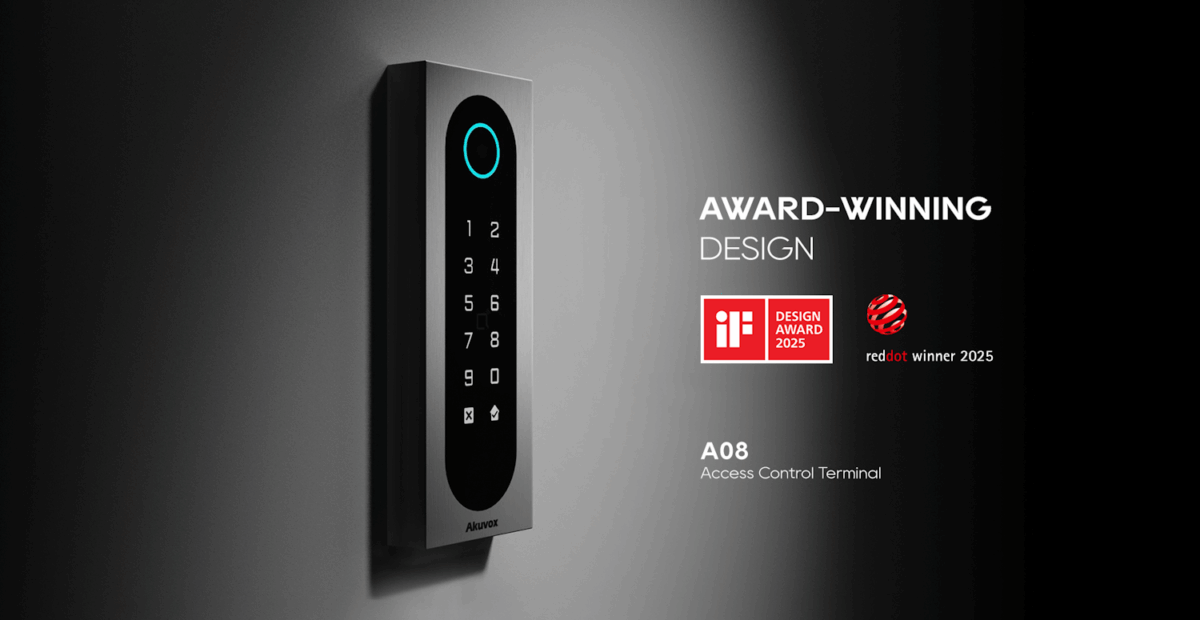

A08, iF Design Award 2025 Winner, is a cutting-edge access control terminal featuring a compact profile and advanced unlocking capabilities, ensuring robust security without compromising efficiency.

• Physical & Power

  Front panel: Toughened Glass

  Frame: Aluminum Alloy

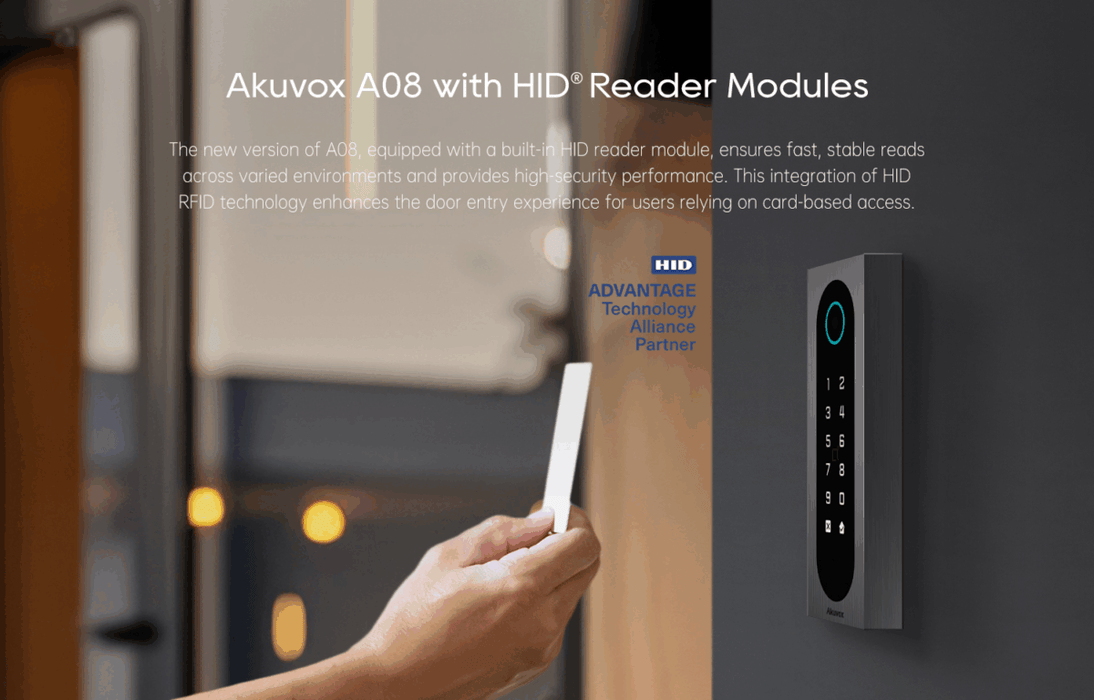

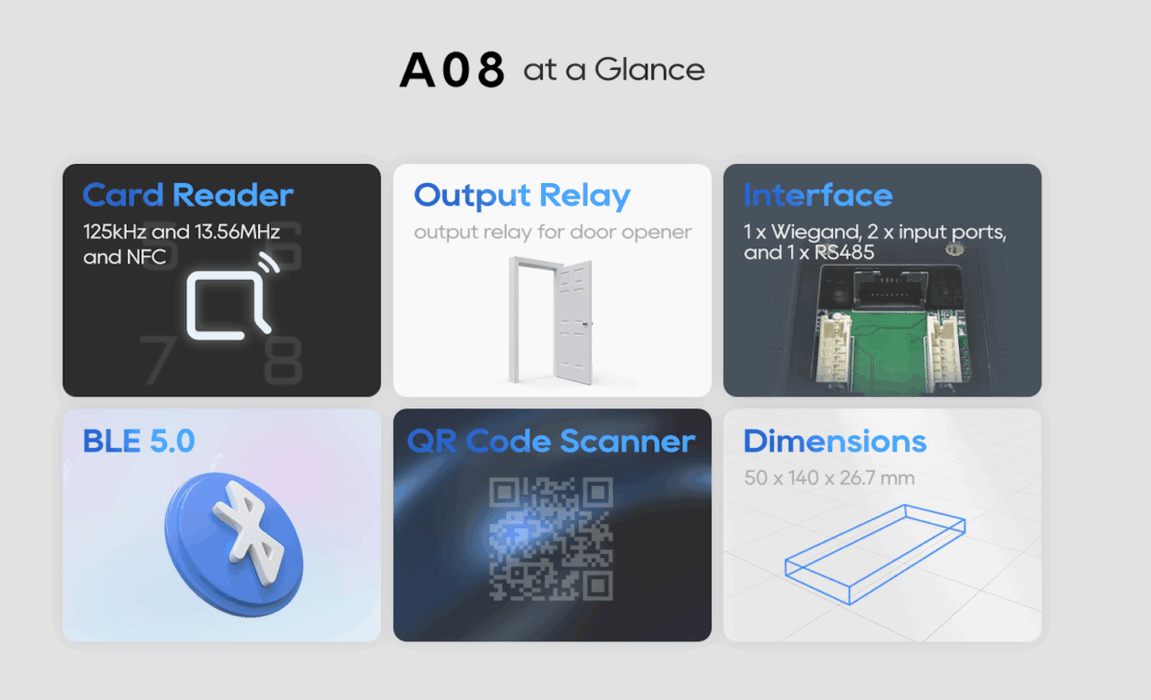

  RFID card reader: 13.56MHz & 125kHz

  Relay out: 1

  Inputs: 2

  Wiegand: Support

  RS485: Support

  Speaker: 8Ω / 0.5W

  Tamper proof alarm: Support

  Ethernet port: RJ45, 10/100Mbps adaptive

  12V DC connector (if not using PoE)

  Power output: 12V 600mA

  IP Level: IP65

  IK Rating: IK09

  Installation: Flush-mounted or Wall-mounted

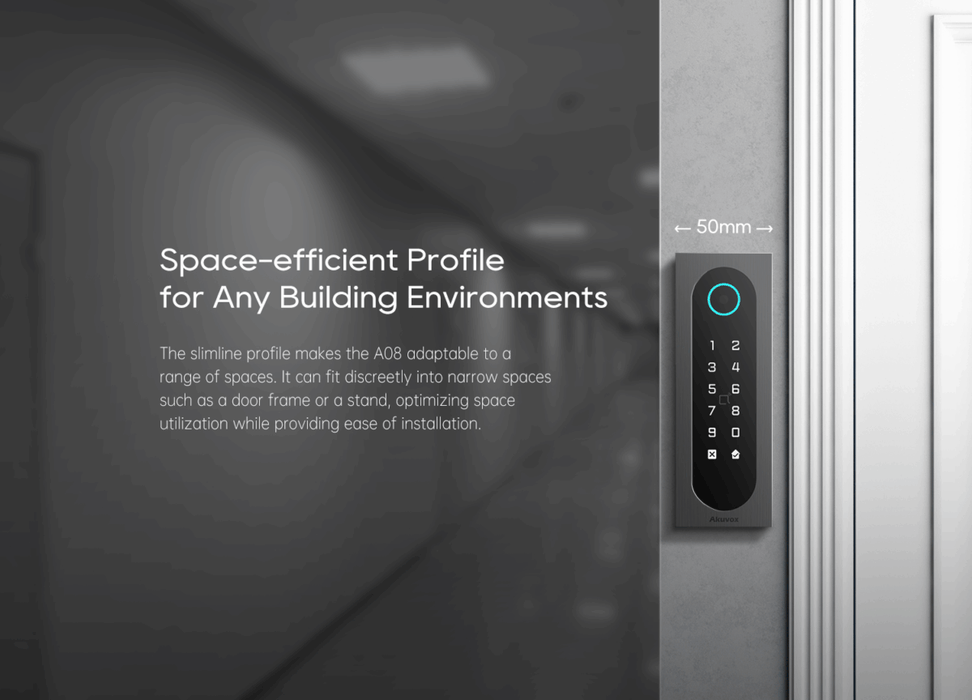

  Dimension: 50 x 140 x 26.7 (mm)

  Working Humidity: 10~90%，no condensing

  Working Temperature: -20°C ~ +55°C

  Storage Temperature: -30°C ~ +70°C

• Networking & Protocol

  Protocols support: IPv4, HTTP, HTTPS, FTP, DNS, NTP, TCP, UDP, ICMP, DHCP, ARP

• Deployment & Maintenance

  Auto-Provisioning

  Web management portal

  Web-based packet dump

  Configuration backup / restore

  Firmware upgrade

  Akuvox Cloud management

  Akuvox SDMC & ACMS

• Door Entry Feature

  Access schedule

  Access level management

  Support switch to reader mode

  Door access logs

  Flexible shift scheduling and attendance management

• Application Scenario

  Provides access control for buildings such as condominiums, apartment buildings, office buildings, gated communities and industrial buildings
