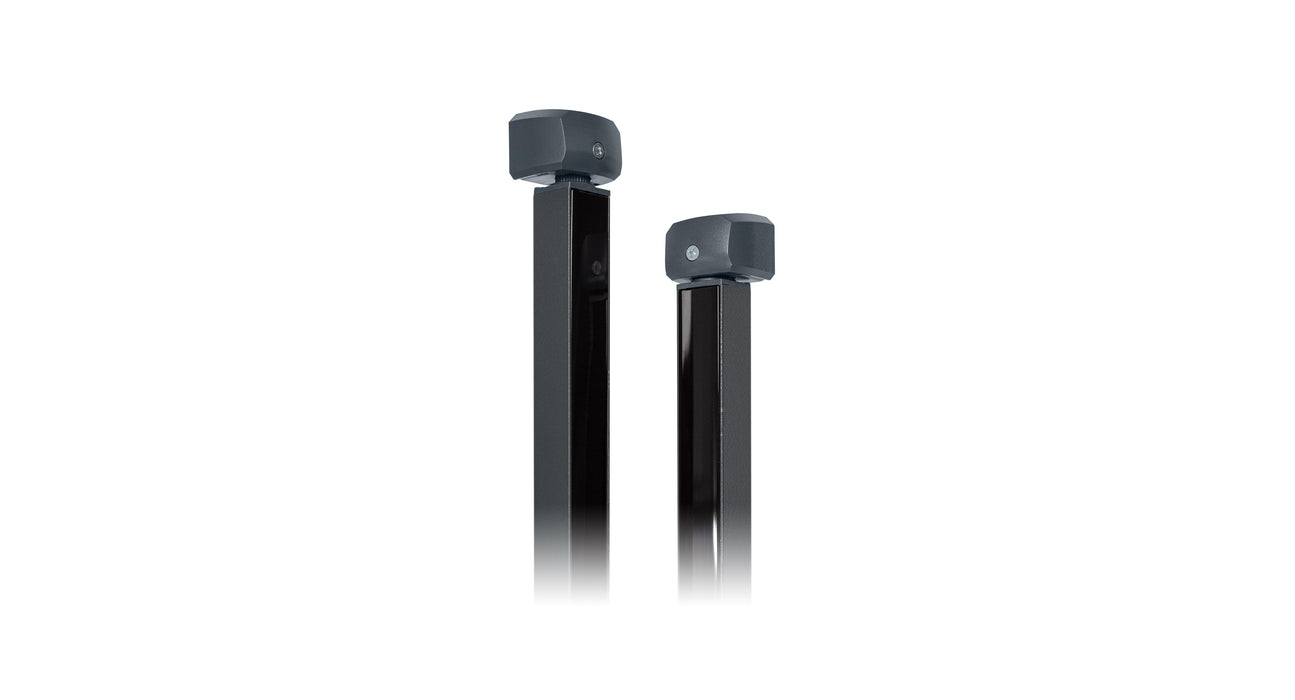

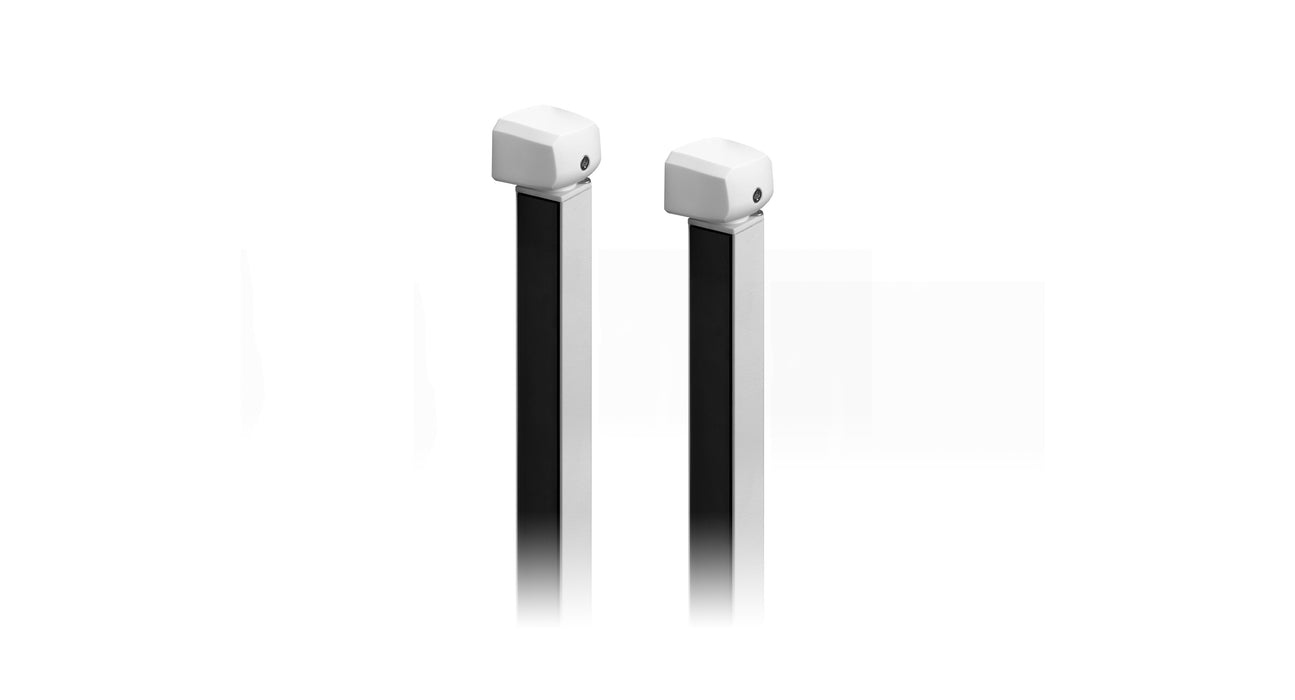

MF2020 Column Photocell

The MF2020 is a column photocell designed to safeguard all types of industrial doors & gates up to a maximum width of 10 meters.

This MF2020 column photocell is:

• Height =1425mm
• Protection Height =1305mm
• Detection Width = 5-10m

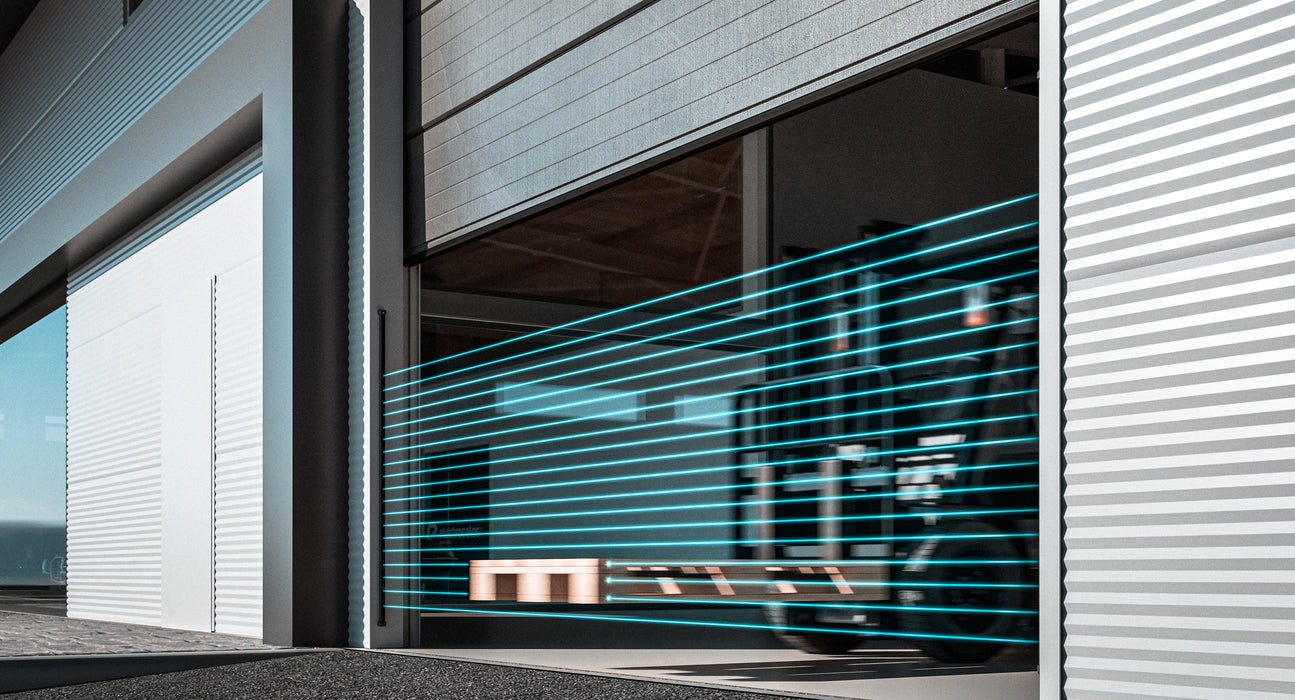

The emitter and receiver create a grid of infrared beams offering protection up to 2.5 meters high.

This photocell has three operating modes: Static, Sequential and Sequential for transparent tarpaulins.

4 sizes available on request:

1425mm | 1825mm | 2225mm | 2625mm

Other features:

• 360º Adjustable angle
• Allows detection of objects up to 50mm
• Protection class IP67
• Dust and water resistant
• Luminous indication of photocell status and obstruction
• Simple and fast connection with plug-in connectors

See Downloads

-360º Adjustable angle
-Allows detection of objects up to 50mm
-Protection class IP67
-Dust and water resistant
-Luminous indication of photocell status and obstruction
-Simple and fast connection with plug-in connectors
