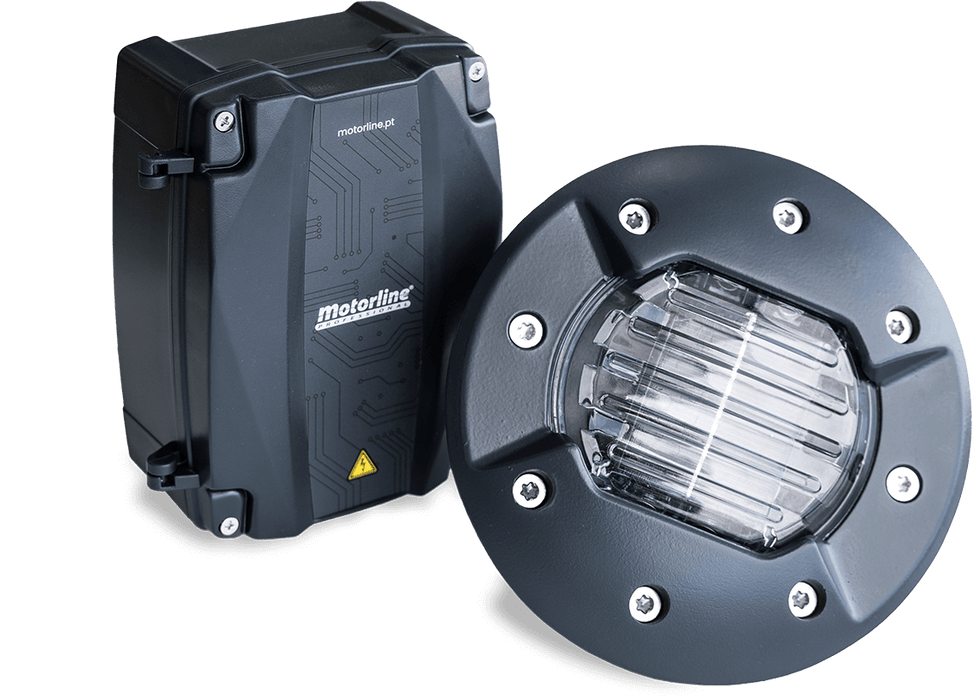

MSMF-LOOP EMITTER

MSMF-LOOP / MRMF-REC is a vehicle detection system with magnetic technology and wireless communication, ideal for traffic control and automation.

Robust and easy to install, it accurately detects the presence and direction of vehicles, even in adverse conditions, offering reliability and efficiency in access management.

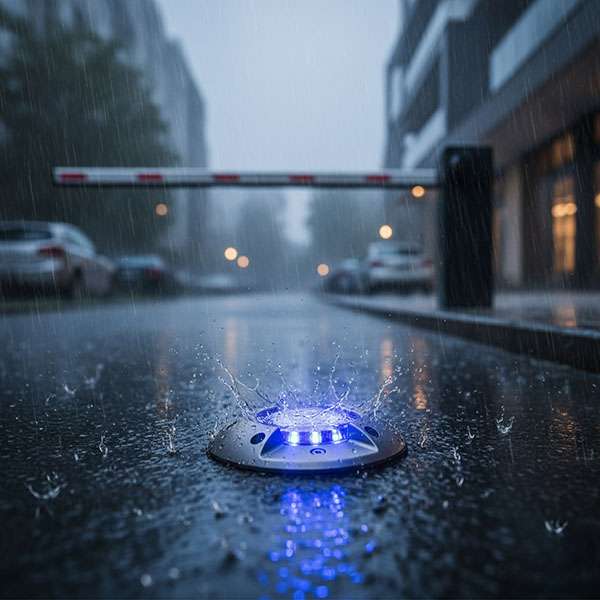

The MSMF-LOOP / MRMF-REC system has been designed to guarantee maximum safety and precision in vehicle detection, even in adverse environmental conditions such as rain, snow or fog.

Its advanced magnetic technology and two-way communication ensure stable operation, avoiding failures when opening or closing accesses.

Power supply = 3.35V Solar Panel + 3.2V 1800mAh Rechargeable Battery or Non-Rechargeable Battery 3.6V 7800mAh
Sensor = Magnetometer
Frequency = 868.0MHz ~ 869.8MHz
Modulation = FSK
Static load capacity = 40 Tons
RF range (open field) = 50m
Dimensions = Ø145x45mm
Protection level = IP68
Vehicle detection range = 1m
RF power (max.) = 14dBm
RF sensitivity = -100dBM

See Downloads
