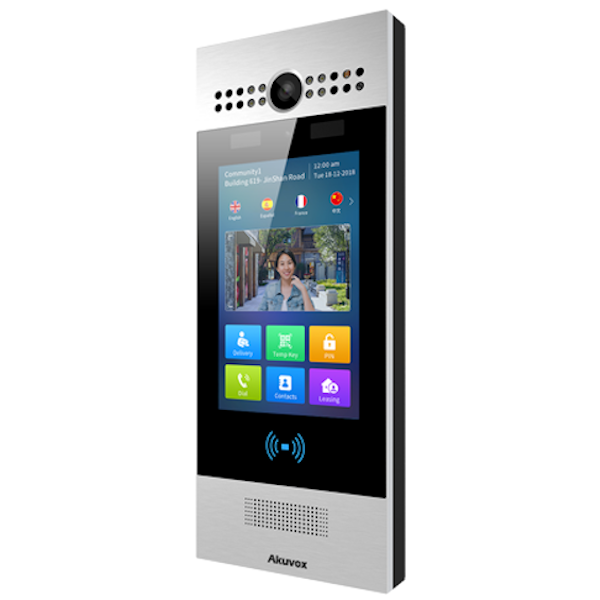

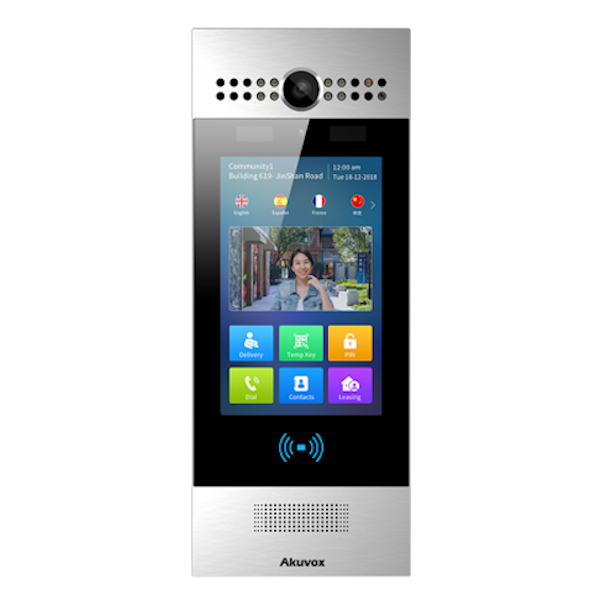

AV-R29C Akuvox SIP Video Touch Screen Outdoor Intercom IP65 w Dual Cameras.
The Akuvox R29 Series is a SIP Video Door Phone with a 7” touch screen, which performs AI-powered offline facial recognition for door access. It is typically used in apartment buildings, high-rise office buildings and building complexes.
4G LTE version available on request.
Surface and Flush Mounting Kits and associated Rain Hoods available on request.
At a Glance
- -Enables audio and visual monitoring of doors/gates which increase security on residential or commercial premises;
- -Dual camera for anti- counterfeit, completely solve all kinds of photos and video deception on various carries;
- -Face verification accuracy >99.9%; face comparison speed <0.5s per person; false recognition rate <0.1%;
- -Allows both audio and video communication to an IP phone, mobile client, or softphone;
- -Enables the ability to remotely control the door/gate;
- -Presents information and user navigation options unique to your business;
- -Speeds response time to visitors, delivery and service personnel that require access;

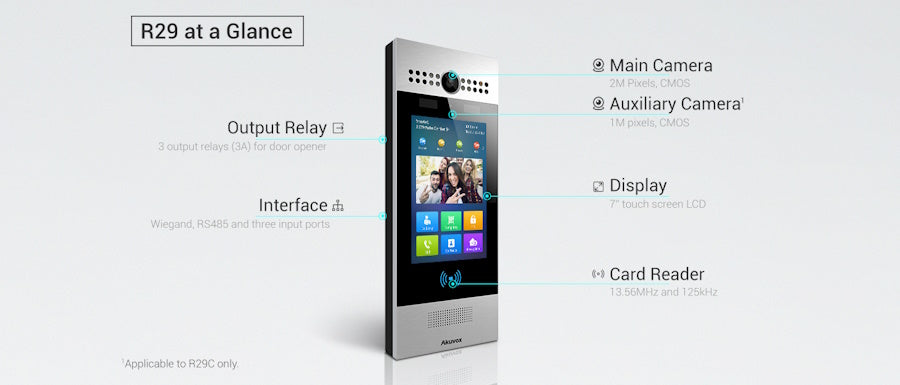

Physical & Power
- -Front panel: Aluminum
- -RAM / ROM: 2GB / 16GB
- -Display: 7 Inch IPS LCD
- -Screen: 7 Inch capacitive touch screen
- -Main Camera: 2M pixels, automatic lighting
- -Auxiliary Camera: 1M pixels
- -Light sensor: Support
- -Infrared sensor: Support
- -Wiegand port: Support
- -RS485 port: Support
- -RF card reader: 13.56MHz & 125kHz
- -Relays ln/out: 3/3
- -Microphone: -32dB
- -Speaker: 8Ω / 2W
- -Bluetooth: Support
- -Ethernet port: RJ45, 10/100Mbps adaptive
- -802.3at Power-over-Ethernet
- -IP/IK Level: IP65/ IK06
- -Installation: Flush-mounted & Wall-mounted
- -Flush-mounted DIM: 324x130x60mm
- -Wall-mounted DIM: 324x130x33mm
- -Working Humidity: 10-90%

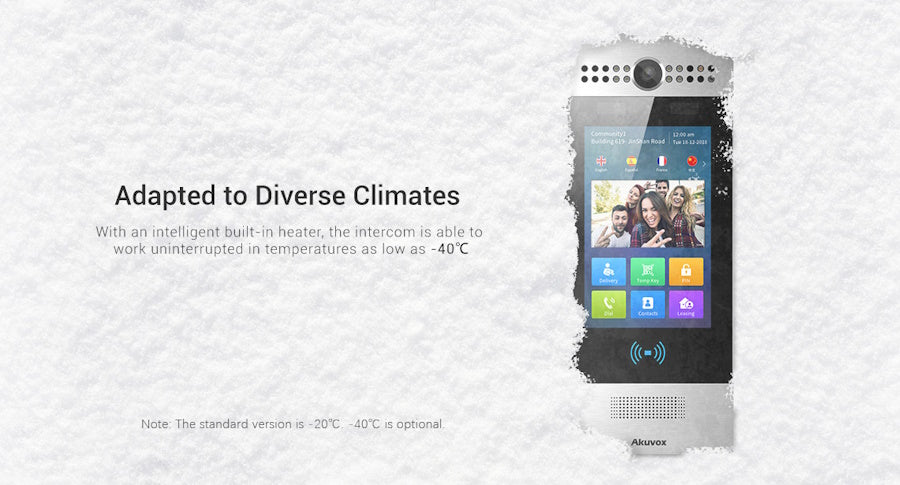

- -Working Temperature: -20°C – +55°C
- -Storage Temperature: -40°C – +70°C
Audio
- -SIP v1 (RFC2543), SIP v2 (RFC3261)
- -Narrowband audio codec: G.711a, G.711μ, G.729
- -Broadband audio codec: G.722
- -DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info
- -Echo Cancellation
- -Voice Activation Detection
- -Comfort Noise Generator
Video
- -Sensor: 1/2.8″, CMOS
- -Pixels: CIF, QCIF, VGA, 4CIF, 720p, 1080p
- -Video codec: H.264
- -Video resolution: up to 1920x1080p
- -Max. image transfer rate: 1080p – 25fps
- -Viewing angle: 105(H)/55°(V)
- -High intensity IR LEDs for picture lighting during dark hours with internal light sensor
- -White LEDs for QR code scanning
- -Compatible to 3rd-party video components,
Networking and Protocol
- -Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP
Door Entry Feature
- -Android OS for any 3rd-party software or customization
- -Relays controlled individually by DTMF tones
- -Multi-way Unlock: Face, IC/ID Card, PIN and BLE
- -Camera permanently operational
- -Auto-night mode with LED illumination
- -White balance: auto
- -Minimum illumination: 0.1LUX
Deployment & Maintenance
- -Auto-Provisioning
- -Web management portal
- -Web-based packet dump
- -Configuration backup / restore
- -Entry log export
- -Access table export / import
- -Firmware upgrade
- -System logs (include door access logs)
Akuvox-R29C-Datasheet-V3.0.pdf
