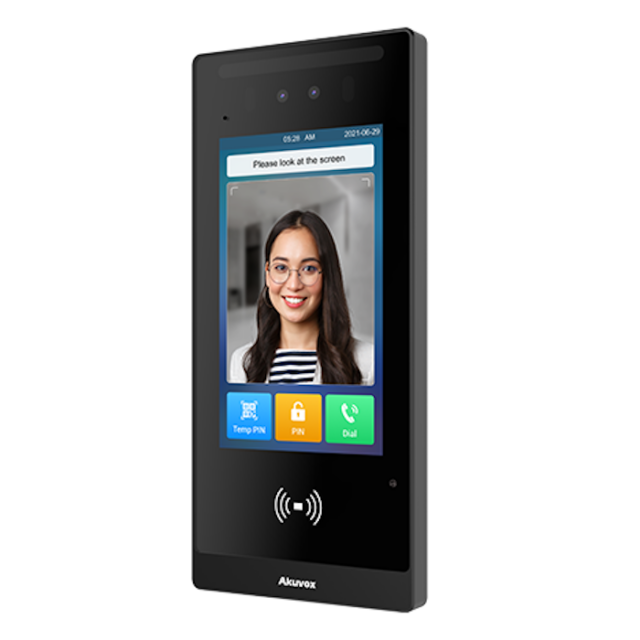

The Akuvox AV-E18C is a smart 7″ face recognition TCP/IP PoE Network door phone featuring touchless building access, optional wireless 4G LTE communication, hassle-free management, and more.
4G LTE version available on request.
Features:
- With 3 Inputs and 2 Relay Outputs
- Excellent Storage for
- Facial Recognition: 20,000
- Card Capacity: 20,000
- Event Capacity: 50,000
- Multi-Technology Card Reader
- 13.56MHz
- 125kHz
- NFC
- A 1024 x 600 7″ IPS LCD Display
- 2M pixel, WDR Camera
- Interfaces
- Wiegand IN/Out Configurable
- OSDP RS485 Output
- TF Card Slot
- Built-In Directory
- Programmable Soft Keys
- Option to add an internal 4G LTE Cellular Module
Applications
- Gate entry points whether local to Network or Remote when using LTE module
- Doors entry points
- Single Households
- Apartments or Gated Communities
- Offices
- and more.

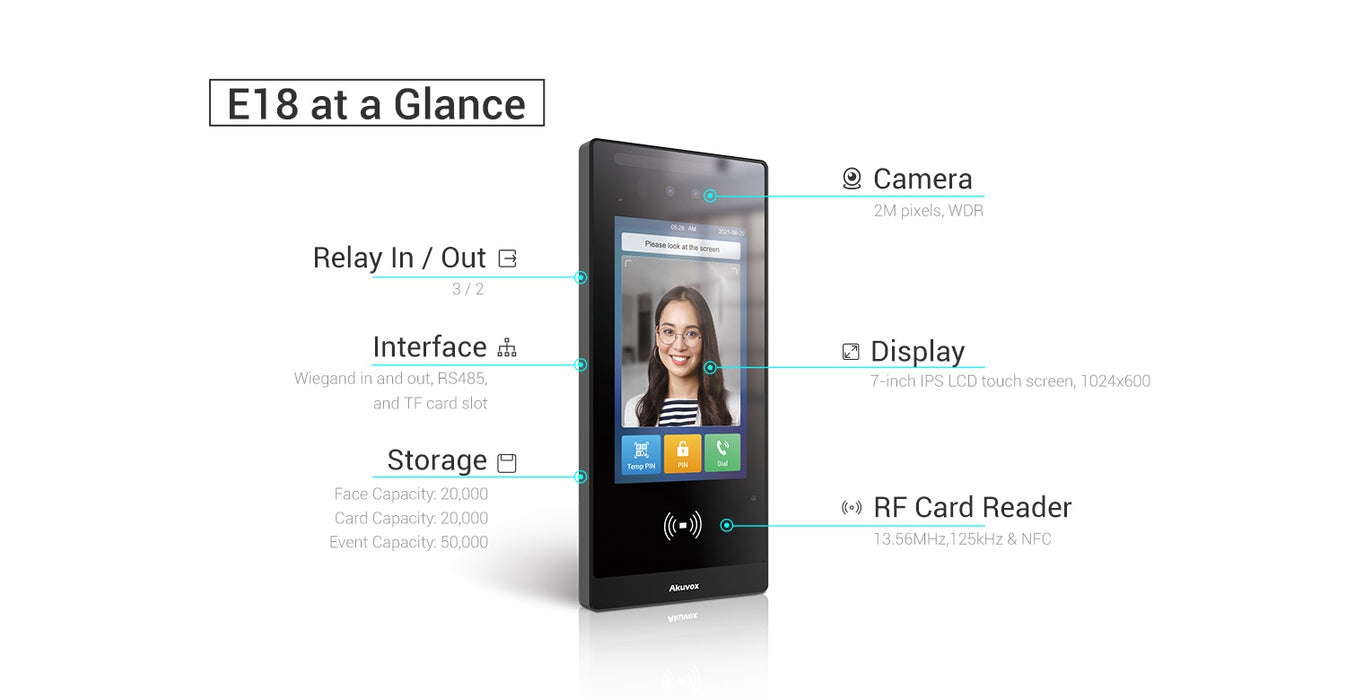

Physical & Power
- Housing Material: Plastic
- Display: 7 Inch IPS LCD, 1024×600
- Camera: 2M pixels, WDR
- Wiegand In: 1
- Wiegand Out: 1
- RS485 Port: 1
- RF Card Reader: 13.56MHz,125kHz & NFC
- Relay In / Out: 3 / 2
- TF Card Slot: 1
- Ethernet Port: RJ45, 10/100Mbps adaptive
- Bluetooth: Support
- Reset: 1
- 802.3af Power-over-Ethernet
- 12V DC Connector (if not using PoE)
- Tamper: Support
- Installation: Wall-mounted
- IP Level: IP65
- Working Humidity: 10~90%, no condensing
- Working Temperature: -20℃~+55℃
- Storage Temperature: -30℃~+60℃
Identification
- Identification Mode: Face, PIN, NFC, RFID Card, BLE & QR code
- Identification Speed: ＜200ms
Capacity
- Face Capacity: 20,000
- Card Capacity: 20,000
- Event Log: 50,000
Forehead Temperature Measurement
- Only E18C(MD02) support
- Distance: 0.3M ~ 1M
- Accuracy: 0.1℃
- Deviation: ±0.3℃
- Range: 34℃ ~ 45℃
Akuvox-E18-A07-Series-Quick-Quide-V1.3.pdf
